Here's some pics I took while doing the winter rebuild during the 2007 / 2008 winter.  Not sure why I'm documenting this, but it may help someone to see a broad overview of the process.

Page 1: Drivetrain removal

Page 1: Drivetrain removal    Page 2: Engine Disassembly    Page 3: Engine Assembly    Page 4: Drivetrain installation

Cam Failure detail

(click on thumbnails for larger image)

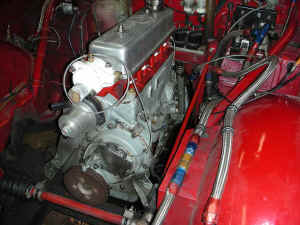

Here you can see I've taken off the hood and tranny cover.

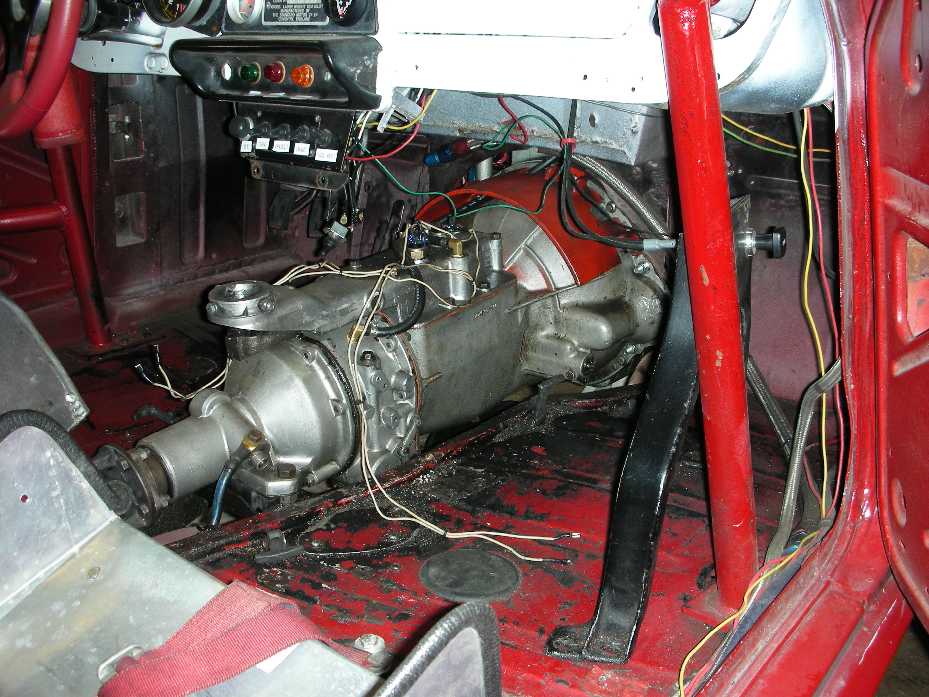

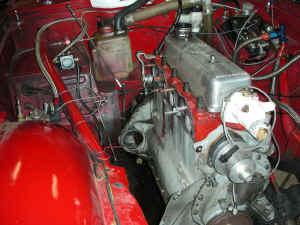

All accessories and connections to the car have been removed / disconnected:

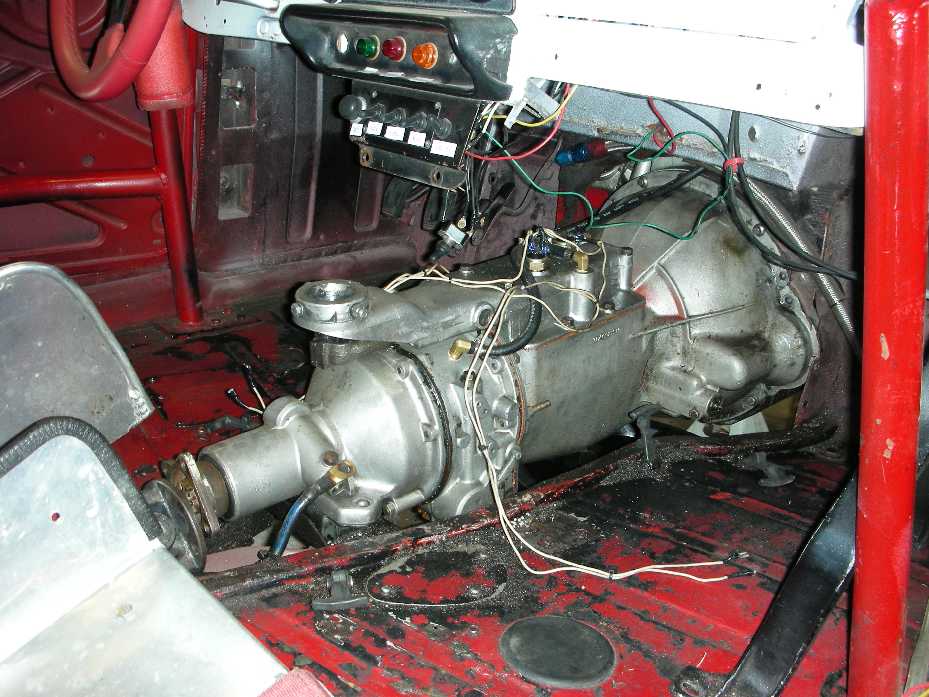

Scatter shield is removed, tranny mount and driveshaft unbolted:

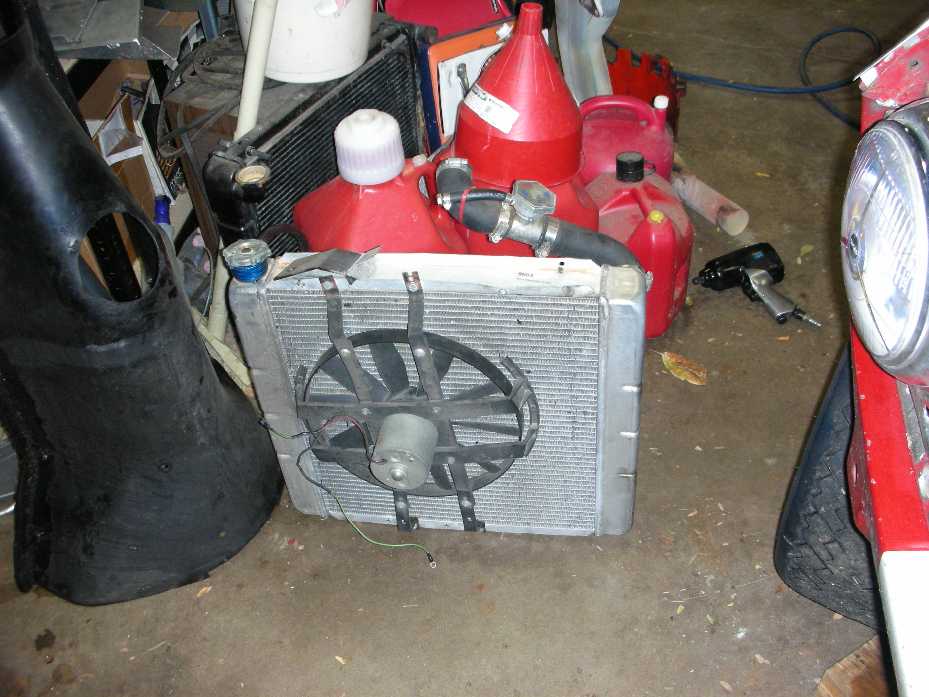

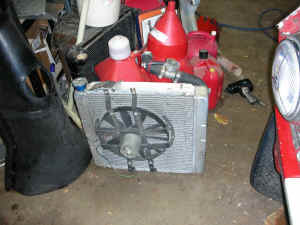

Here's the "takeoffs" - header and scatter shield, tranny cover and radiator, carburetors:

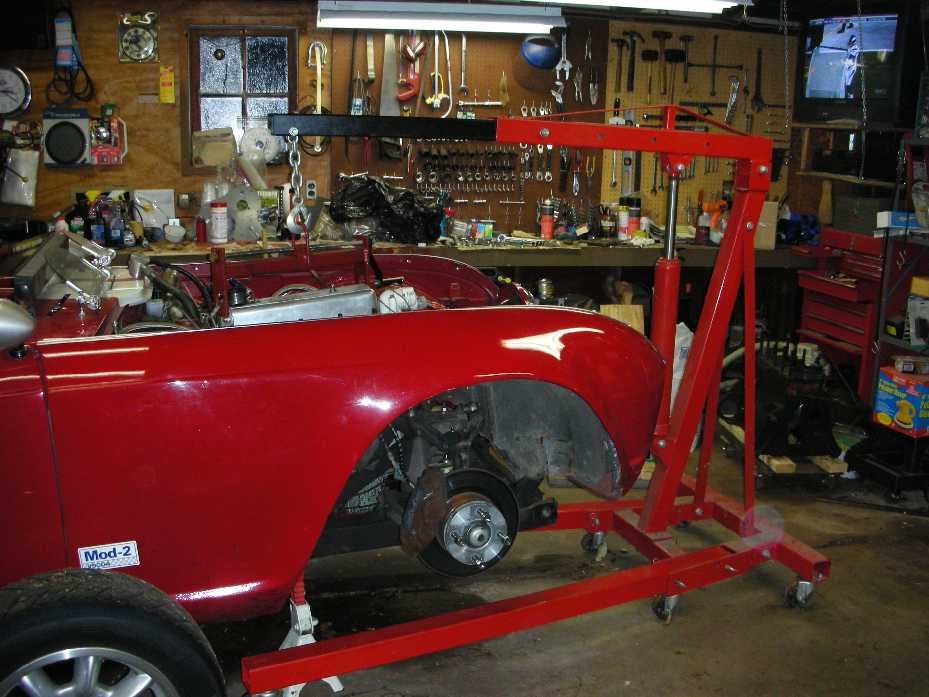

Here's the engine hoist ready to begin:

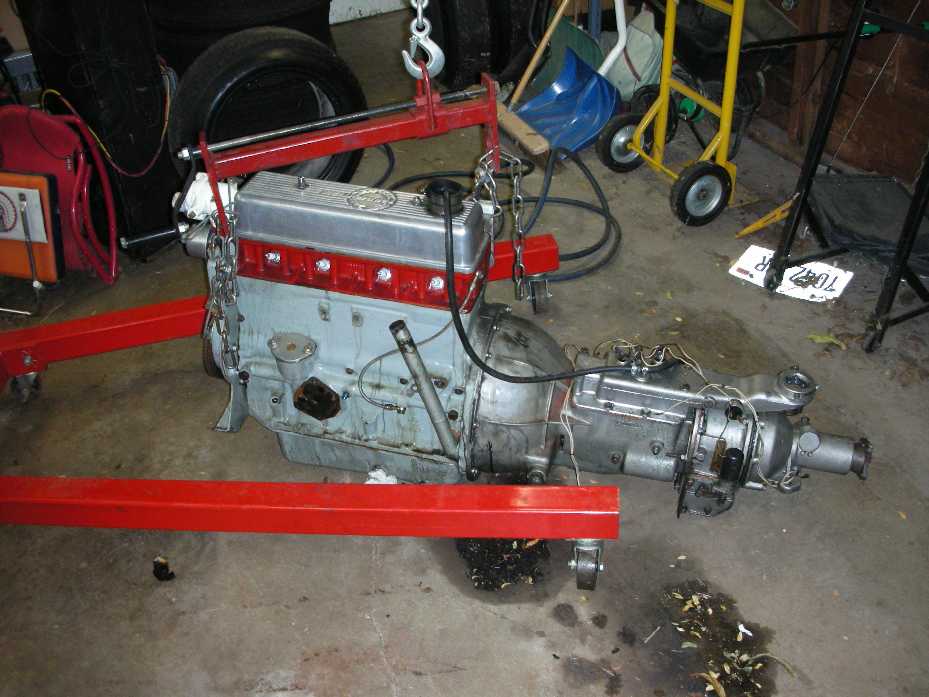

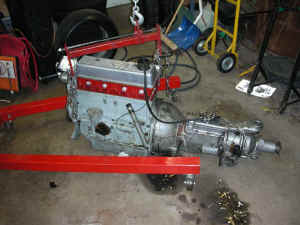

Here's the lift process.  A load balancer is essential as you need to change the angle of the drivetrain during the hoisting process:

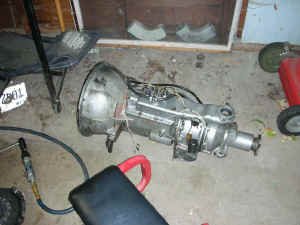

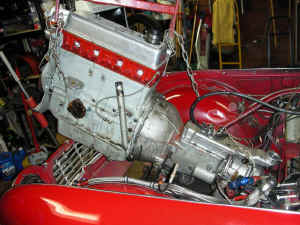

Here's the clutch removed and the tranny unbolted:

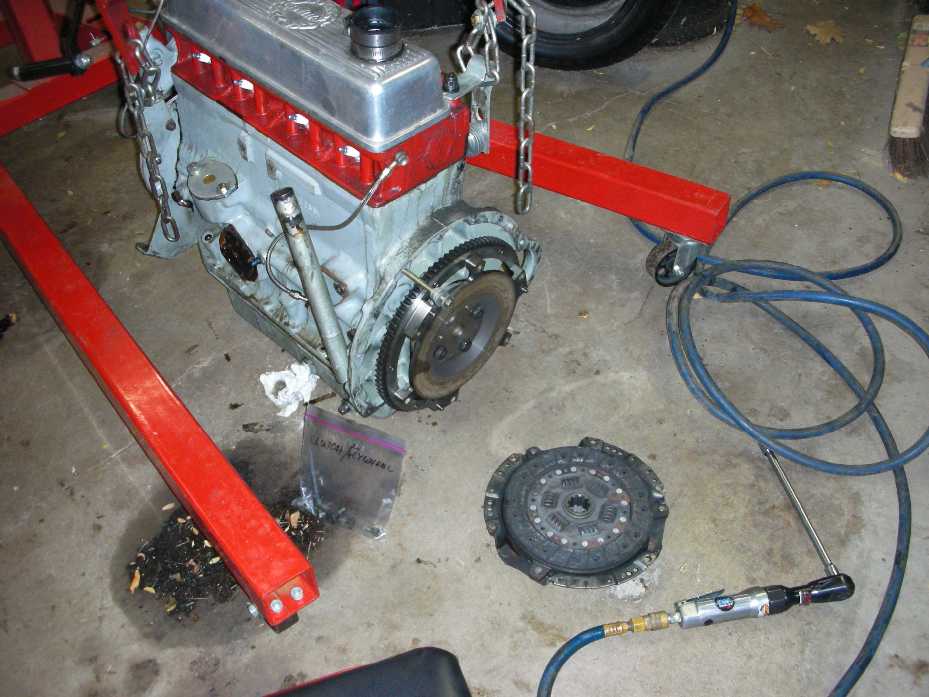

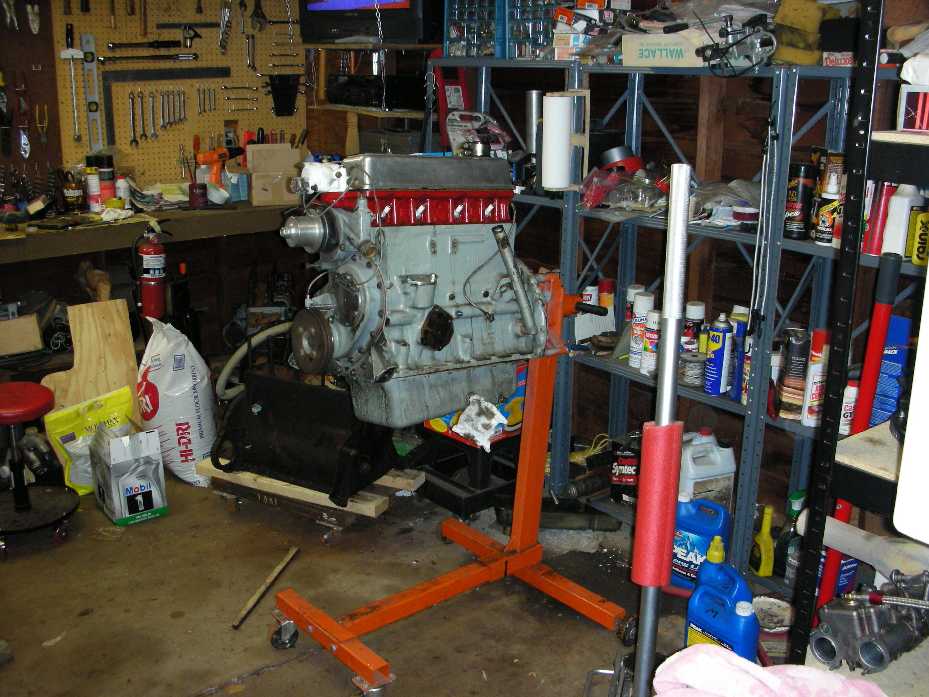

Engine on the stand ready to be attacked:
